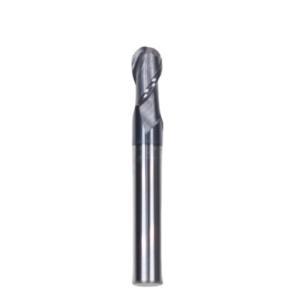

8mm R4*8*16*8*60 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron
Product Description:
This 8mm Ball Nose End Mill is specifically designed for high-performance machining across a wide range of materials, including carbon steel, alloy steel, stainless steel, and cast iron. Featuring a 2-flute ball nose geometry, it delivers superior surface finishes and precise contouring, making it ideal for 3D machining and mold applications.
Key Specifications:
Cutting Diameter (Ball Nose): 8mm(R4 radius)
Flute Length: 8mm
Cutting Length: 16mm
Shank Diameter: 8mm
Overall Length: 60mm
Flutes: 2
Coating:
The AITiN (Aluminum Titanium Nitride) coating offers outstanding hardness, heat resistance, and oxidation protection, making it ideal for high-speed machining of difficult materials.
Features:
- High-quality carbide substrate for toughness and wear resistance
- AITiN coating for extended tool life and enhanced cutting performance
- Precision-ground ball nose geometry for fine surface finishes and detailed contouring
- Dual-flute design optimized for effective chip removal and reduced cutting forces
Applications:
Perfect for mold and die machining, aerospace parts, automotive components, and general-purpose milling on hardened steels, alloy steels, stainless steels, and heat-resistant materials.
2 Flutes Ball Nose End Mill Specifications
(Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron) |
| Sizes | Cut Diameter
D | Cut Length
Lc | Shank Diameter
d | Overall Length
L | Flutes No. |
| R1.5*6*3*50 | 3 | 6 | 3 | 50 | 2 |
| R1.5*6*3*75 | 3 | 6 | 3 | 75 | 2 |
| R1.5*6*3*100 | 3 | 6 | 3 | 100 | 2 |
| R0.5*2*4*50 | 1 | 2 | 4 | 50 | 2 |
| R0.75*3*4*50 | 1.5 | 3 | 4 | 50 | 2 |
| R1*4*4*50 | 2 | 4 | 4 | 50 | 2 |
| R1.25*5*4*50 | 2.5 | 5 | 4 | 50 | 2 |
| R1.5*6*4*50 | 3 | 6 | 4 | 50 | 2 |
| R1.75*7*4*50 | 3.5 | 7 | 4 | 50 | 2 |
| R2*8*4*50 | 4 | 8 | 4 | 50 | 2 |
| R2*8*4*75 | 4 | 8 | 4 | 75 | 2 |
| R2*8*4*100 | 4 | 8 | 4 | 100 | 2 |
| R0.5*2*4*75 | 1 | 2 | 4 | 75 | 2 |
| R0.75*3*4*75 | 1.5 | 3 | 4 | 75 | 2 |
| R1*4*4*75 | 2 | 4 | 4 | 75 | 2 |
| R1.25*5*4*75 | 2.5 | 5 | 4 | 75 | 2 |
| R1.5*6*4*75 | 3 | 6 | 4 | 75 | 2 |
| R2.5*10*5*50 | 5 | 10 | 5 | 50 | 2 |
| R2.5*10*5*75 | 5 | 10 | 5 | 75 | 2 |
| R2.5*10*5*100 | 5 | 10 | 5 | 100 | 2 |
| R0.5*2*6*50 | 1 | 2 | 6 | 50 | 2 |
| R0.75*3*6*50 | 1.5 | 3 | 6 | 50 | 2 |
| R1*4*6*50 | 2 | 4 | 6 | 50 | 2 |
| R1.25*5*6*50 | 2.5 | 5 | 6 | 50 | 2 |
| R1.5*6*6*50 | 3 | 6 | 6 | 50 | 2 |
| R2*8*6*50 | 4 | 8 | 6 | 50 | 2 |
| R2.5*10*6*50 | 5 | 10 | 6 | 50 | 2 |
| R3*12*6*50 | 6 | 12 | 6 | 50 | 2 |
| R3*12*6*75 | 6 | 12 | 6 | 75 | 2 |
| R3*12*6*100 | 6 | 12 | 6 | 100 | 2 |
| R3*12*6*150 | 6 | 12 | 6 | 150 | 2 |
| R3.5*14*8*60 | 7 | 14 | 8 | 60 | 2 |
| R4*16*8*60 | 8 | 16 | 8 | 60 | 2 |
| R4*16*8*75 | 8 | 16 | 8 | 75 | 2 |
| R4*16*8*100 | 8 | 16 | 8 | 100 | 2 |
| R4*16*8*150 | 8 | 16 | 8 | 150 | 2 |
| R4.5*18*10*75 | 9 | 18 | 10 | 75 | 2 |
| R5*20*10*75 | 10 | 20 | 10 | 75 | 2 |
| R5*20*10*100 | 10 | 20 | 10 | 100 | 2 |
| R5*20*10*150 | 10 | 20 | 10 | 150 | 2 |
| R5.5*22*12*75 | 11 | 22 | 12 | 75 | 2 |
| R6*24*12*75 | 12 | 24 | 12 | 75 | 2 |
| R6*24*12*100 | 12 | 24 | 12 | 100 | 2 |
| R6*24*12*150 | 12 | 24 | 12 | 150 | 2 |
| R7*28*14*80 | 14 | 28 | 14 | 80 | 2 |
| R7*28*14*100 | 14 | 28 | 14 | 100 | 2 |
| R7*28*14*150 | 14 | 28 | 14 | 150 | 2 |
| R8*32*16*100 | 16 | 32 | 16 | 100 | 2 |
| R8*32*16*150 | 16 | 32 | 16 | 150 | 2 |
| R9*36*18*100 | 18 | 36 | 18 | 100 | 2 |
| R9*36*18*150 | 18 | 36 | 18 | 150 | 2 |
| R10*40*20*100 | 20 | 40 | 20 | 100 | 2 |
| R10*40*20*150 | 20 | 40 | 20 | 150 | 2 |
