SB-7 Cylindrical End Cut Carbide Burrs 3/4" Cut Dia 1/4" Shank Dia Carbide Rotary Files

Name: SB7 Cylindrical End Cut Carbide Burrs 34quot Cut Dia 14quot Shank Dia Carbide Rotary Files
Brand: BABOS
Price: 1 USD

China SB-7 Cylindrical End Cut Carbide Burrs 3/4" Cut Dia 1/4" Shank Dia Carbide Rotary Files factory

Brand Name : BABOS

Model Number : SB-7

Place of Origin : China

MOQ : 20pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10,0000pcs per month

Delivery Time : 3 days for standard products, 1-2weeks for custom products.

Packaging Details : Plastic Box

Material : Tungsten Carbide

Shape : Cylinder With End Cut

Cut Diameter : 3/4 inch

Cut Length : 1 inch

Shank Diameter : 1/4 inch

Overall Length : 2-3/4inch

Flute Type : Standard Double Cut

Suitable For : Machining Surface Profile of Workpiece

Application : Deburring, Shaping, and Finishing

Package Quantity : 1 Piece

Max Rpm : 50,000

Contact Now

SB-7 Cylindrical End Cut Carbide Burrs 3/4" Cut Dia 1/4" Shank Dia Carbide Rotary Files

Description:

The SB-7 cylindrical end cut carbide burr is the go-to tool for large-scale, aggressive material removal tasks. It's used to smooth out welds, remove rust, and shape larger areas of metal or other materials, typically used with die grinders or rotary tools for maximum efficiency and precision.

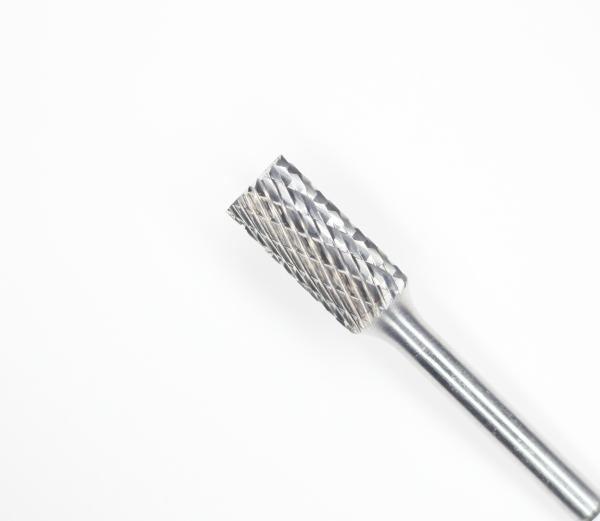

SB-7 Cylinder With End Cut Burrs On 1/4" Shank

SB-7 Cylindrical End Cut Carbide Burrs 3/4" Cut Dia 1/4" Shank Dia Carbide Rotary Files

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:3/4"

Length of Flute: 1"

Shank Diameter: 1/4”

OAL: 2-3/4"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type B Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	1.5	6	38	B1506	Solid
	2	11	38	B0211	Solid
	2.5	12	38	B2512	Solid
	3	13	38	B0313	Solid
	4	13	51	B0413	Brazed
	5	13	51	B0513	Brazed
	6	13	51	B0613	Brazed
6	6	16	63	B0616	Brazed
	6	25	65	B0625	Solid
	8	20	65	B0820	Brazed
	10	20	70	B1020	Brazed
	11	25	70	B1125	Brazed
	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
8	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
Inch Standard
3/8''	7/8"	1"	2-3/4"	SB-8	Brazed
1/8''	1/16"	1/4"	1-1/2"	SB-41	Solid
1/8''	1/8"	9/16"	1-1/2"	SB-43	Solid
1/4''	5/32"	5/8"	2"	SB-13	Solid
	3/16"	5/8"	2''	SB-14	Solid
	1/4"	5/8"	2''	SB-1	Solid
	1/4"	1"	2''	SB-1L	Solid
	5/16"	3/4''	2-1/2"	SB-2	Brazed
	3/8"	3/4''	2-1/2"	SB-3	Brazed
	7/16"	1"	2-3/4"	SB-4	Brazed
	1/2"	1"	2-3/4"	SB-5	Brazed
	5/8"	1"	2-3/4"	SB-6	Brazed
	1"	1"	2-3/4"	SB-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about B type burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
